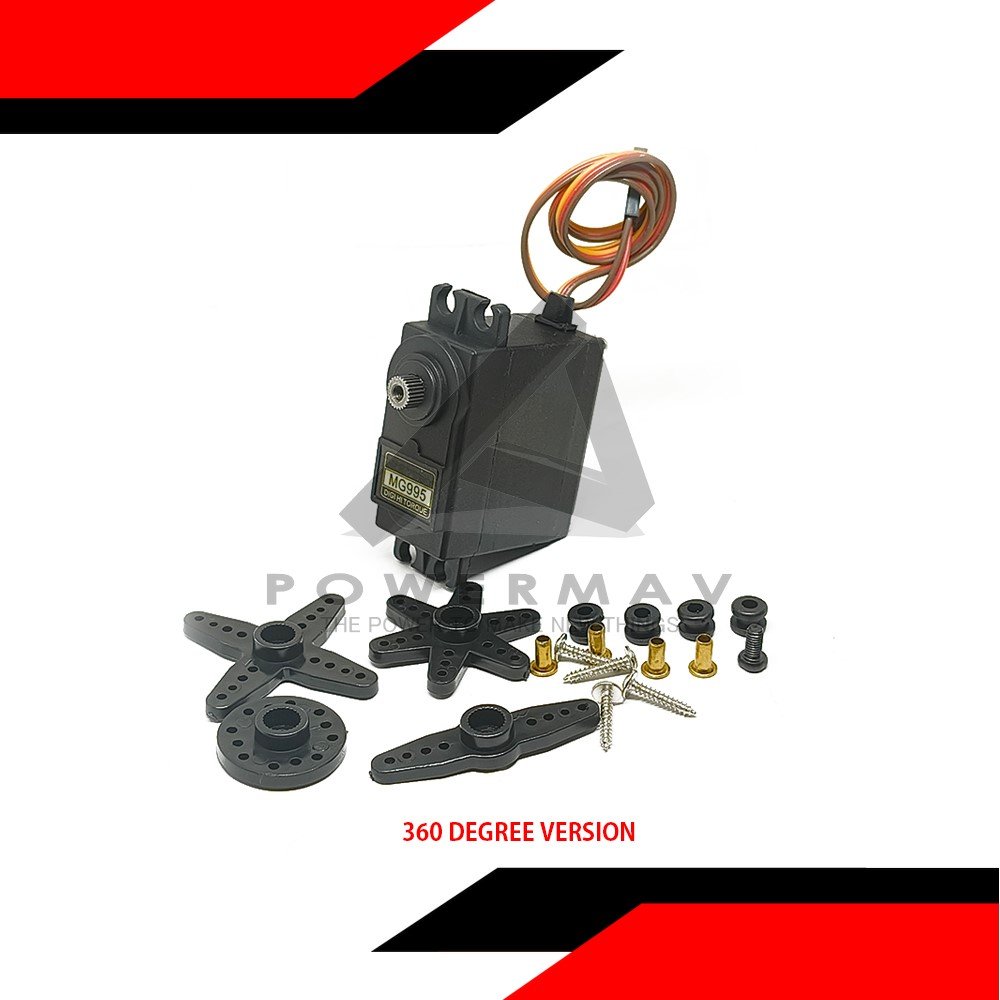

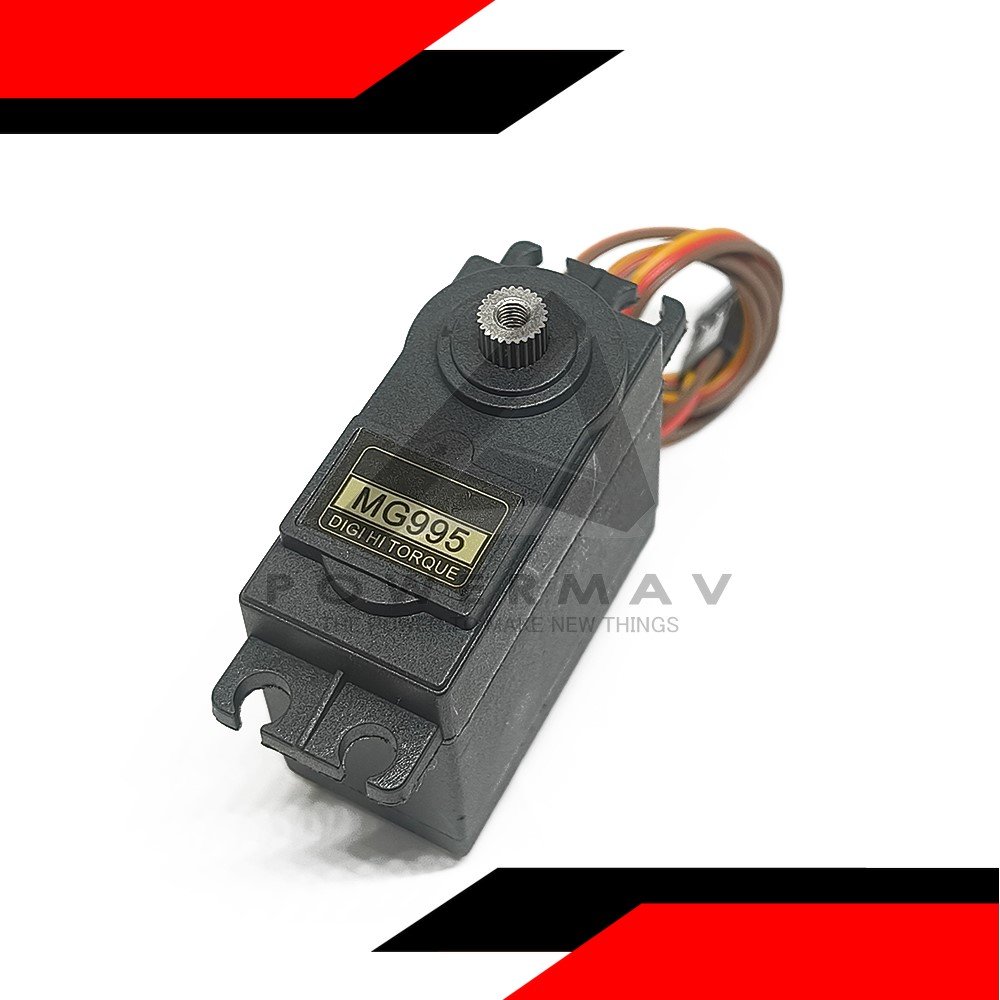

MG995 360 DEGREE SERVO MOTOR

🔹 MG995 360 Degree Servo Motor

High-torque MG995 servo modified for full 360-degree continuous rotation, ideal for robotics, wheeled robots, automation, and RC applications requiring smooth and strong rotational movement.

✅ Specifications:

• Model: MG995 (360° Continuous Rotation)

• Operating Voltage: 4.8V – 7.2V

• Stall Torque:
  • 9.4 kg·cm at 4.8V
  • 11 kg·cm at 6V

• Speed: 0.20 sec/60° at 4.8V (approx., varies due to 360° mod)

• Rotation Type: Full 360° continuous

• Control Signal: Standard PWM (1–2ms pulse)

• Gear Type: Metal gears

• Servo Type: Standard size

• Connector: 3-pin (Signal, VCC, GND)

⚙️ Features:

• Continuous rotation suitable for drive wheels

• Durable metal gear construction

• Smooth and powerful operation

• Compatible with Arduino, ESP32, and RC controllers

• High torque for lifting, pushing, and mobile robots

📦 Applications:

• Robotics drive wheels

• RC vehicles

• Pan/tilt systems with continuous rotation

• Automation projects

• Arduino and microcontroller robotic builds
