0-25V VOLTAGE SENSOR MODULE

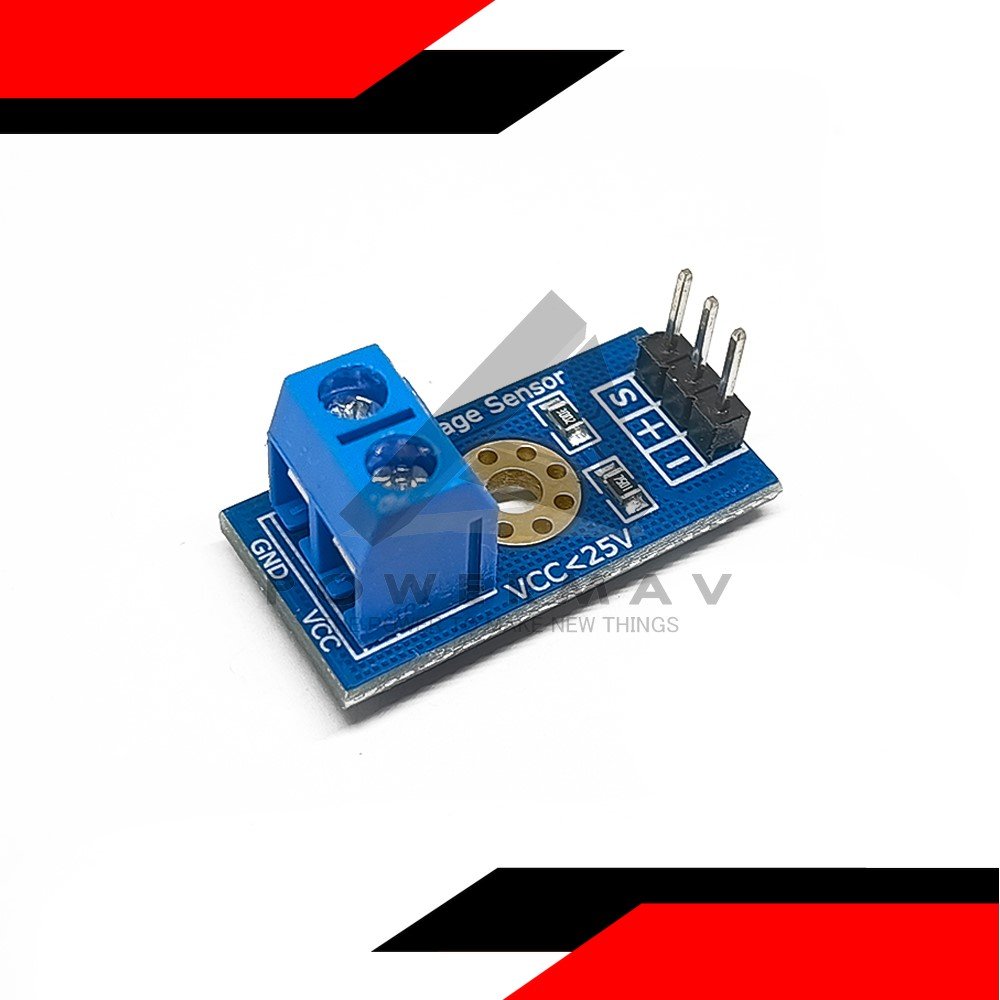

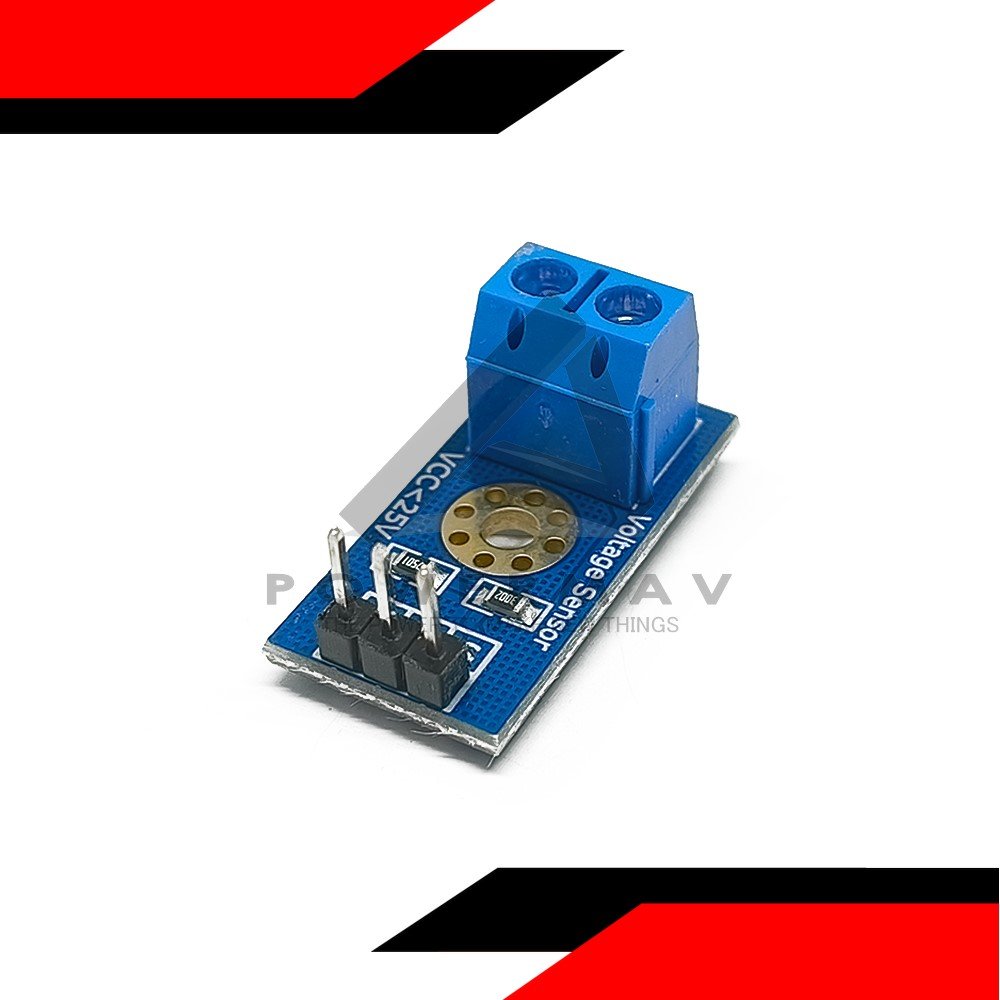

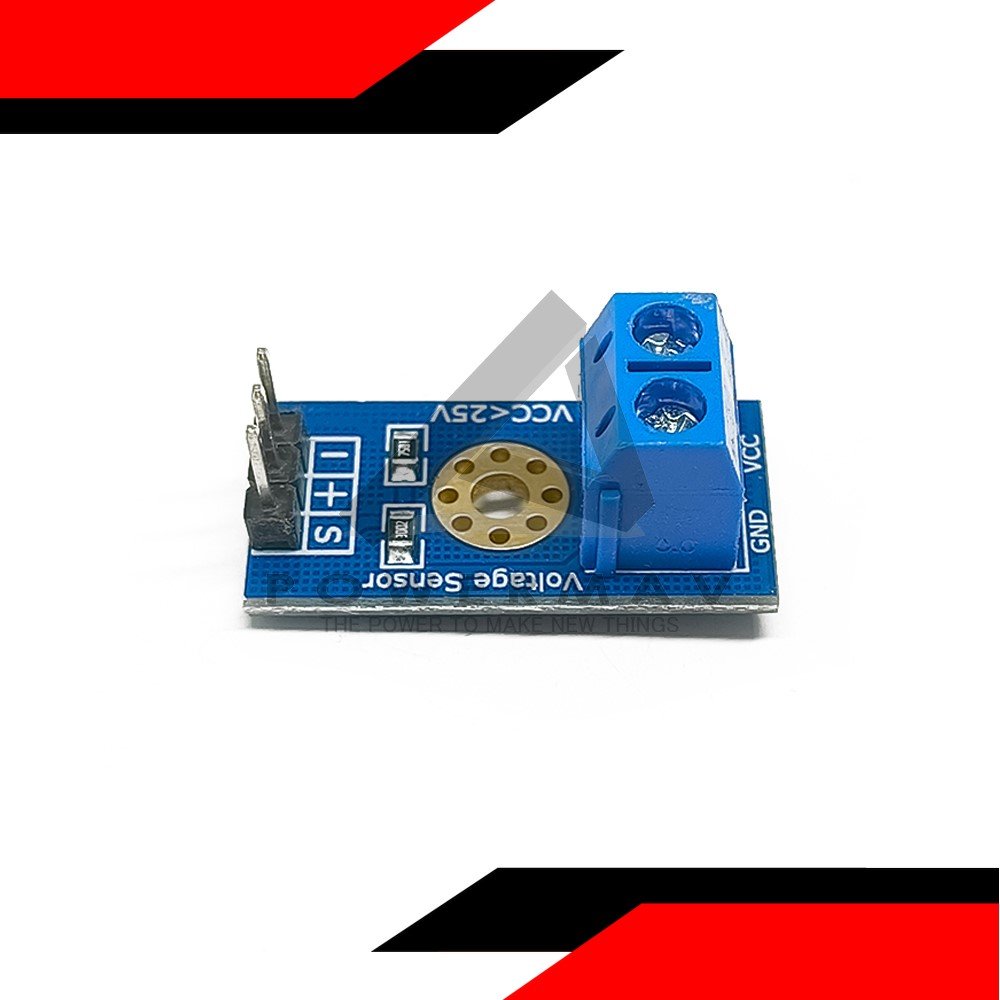

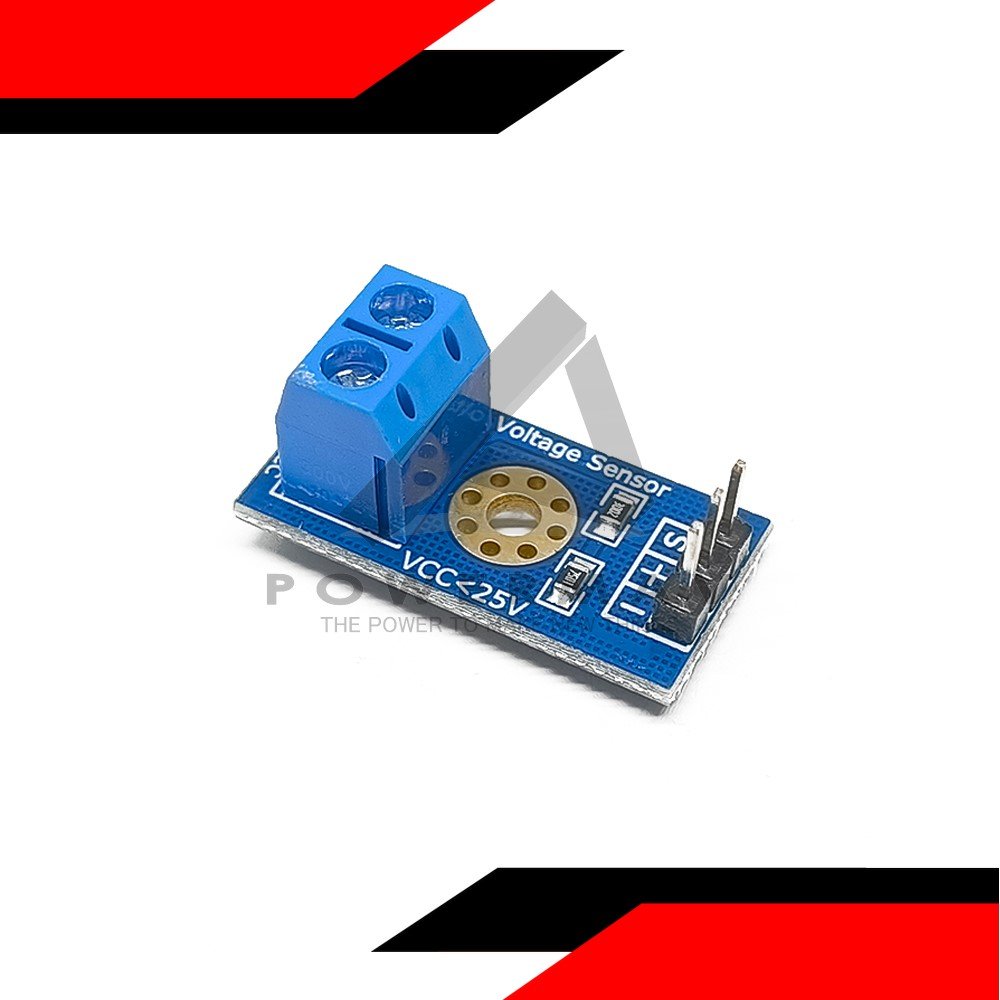

🔹 0–25V Voltage Sensor Module

A compact voltage sensing module designed to measure DC voltages up to 25V when used with Arduino, ESP32, or other microcontrollers. Ideal for battery monitoring, power measurement, and electronics diagnostics.

✅ Specifications:

• Input Voltage Range: 0–25V DC

• Output Voltage: 0–5V (scaled for microcontroller ADC)

• Analog Output: 0–1023 (10-bit ADC compatible)

• Voltage Divider Ratio: 5:1

• Accuracy: ±1–2% (depends on ADC resolution)

• Connector Type: 3-pin (VCC, GND, Analog Out)

⚙️ Features:

• Simple 3-wire connection

• Safe voltage scaling for Arduino analog pins

• High-precision resistive divider

• Compact PCB with mounting holes

• Works with both 5V and 3.3V systems

📦 Applications:

• Battery voltage monitoring

• Solar power systems

• Robotics and automation

• Power supply measurement

• DIY electronics projects
