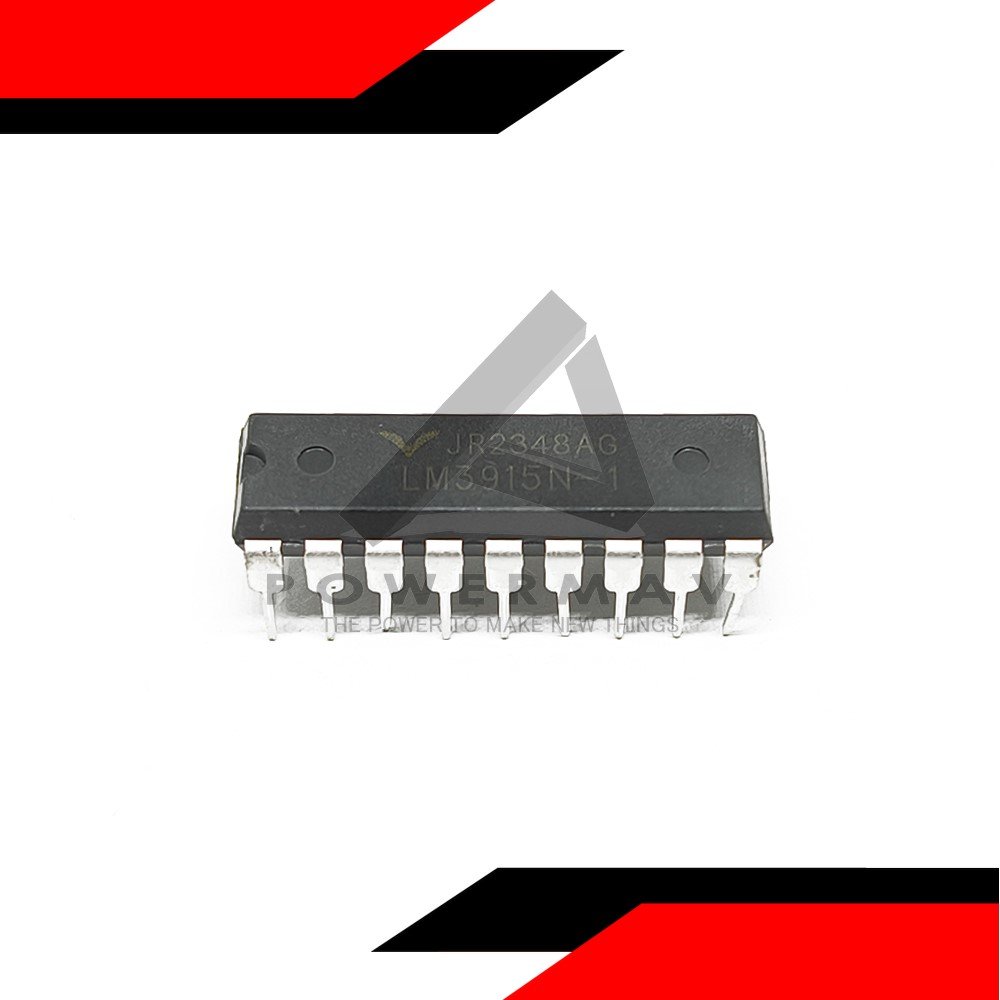

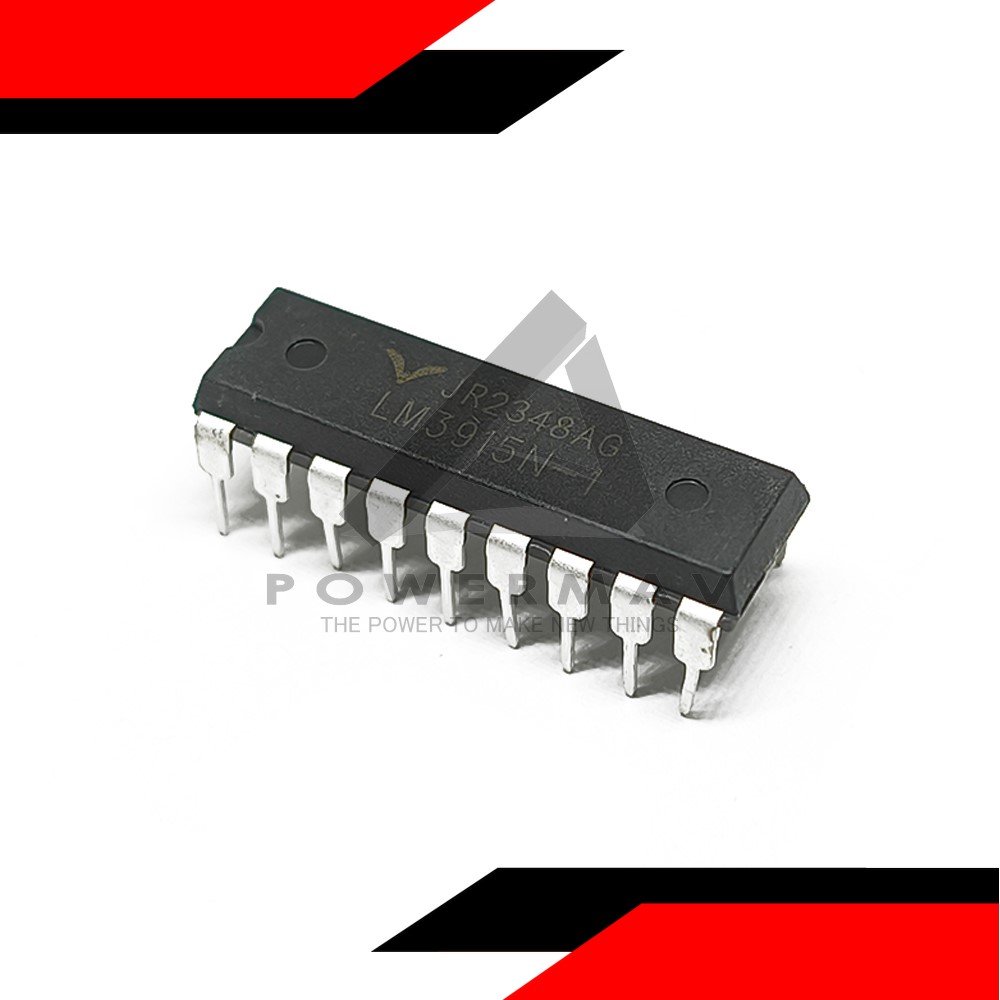

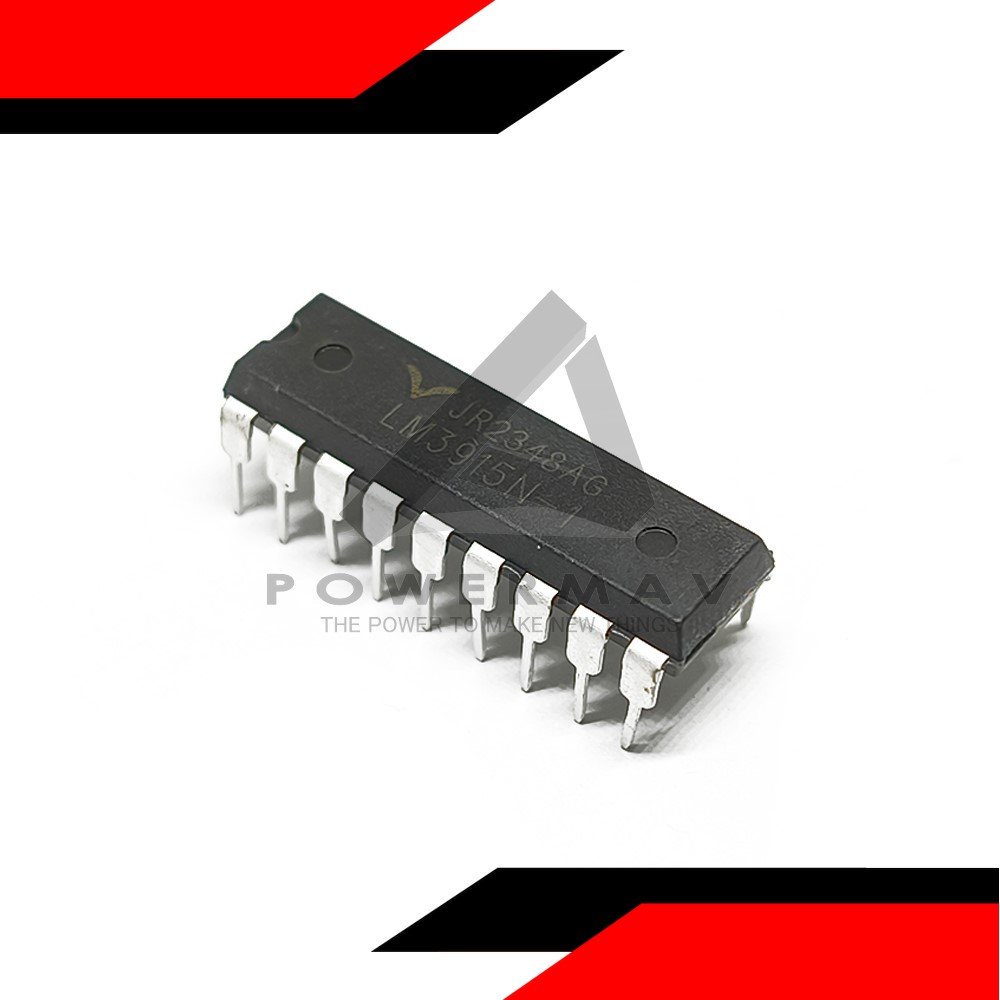

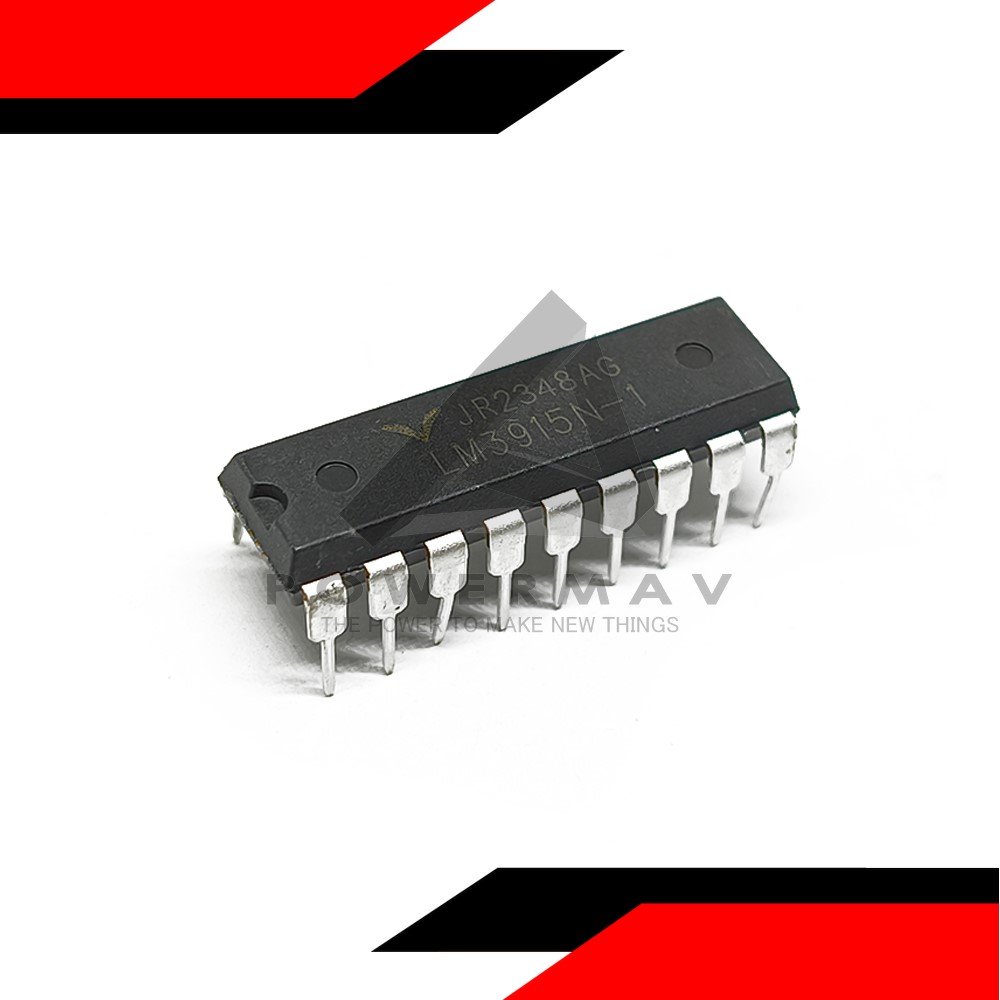

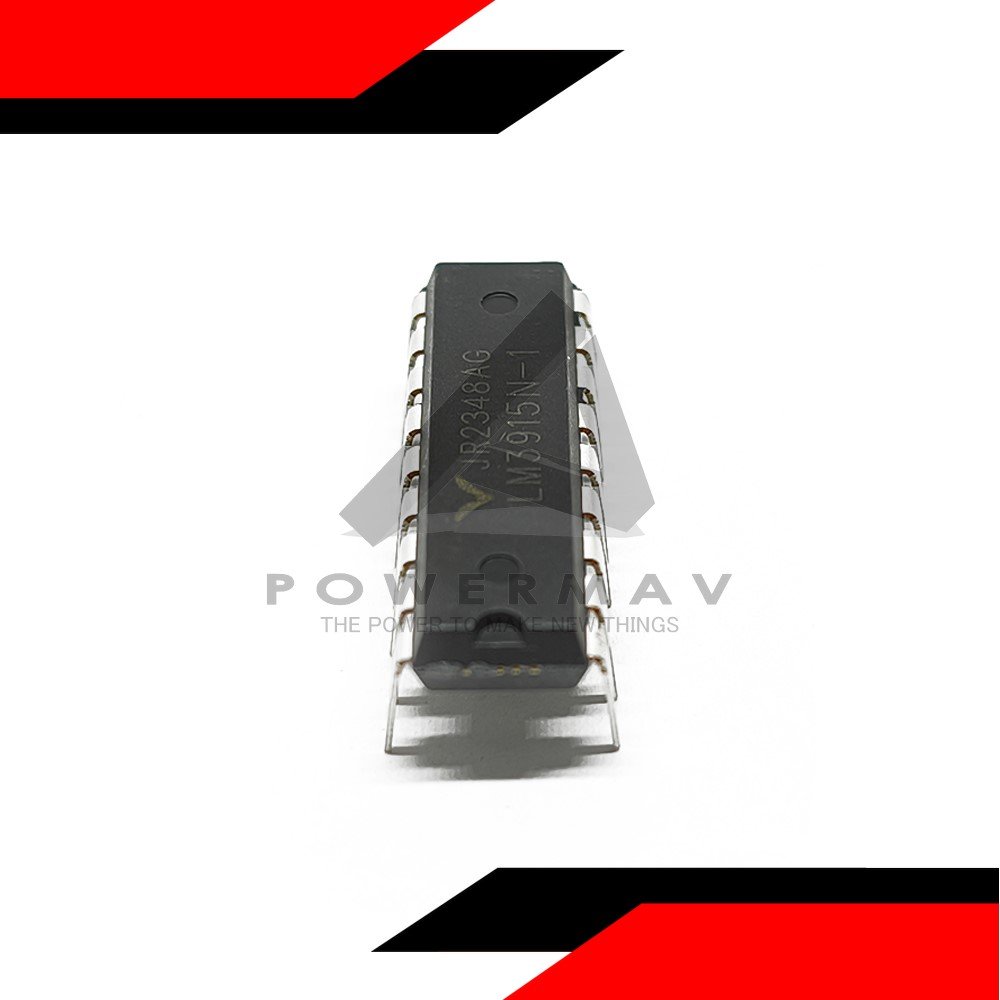

LM3915N DIP IC

LM3915N DIP IC

Monolithic LED bar/dot display driver IC with logarithmic 10-segment output. Ideal for audio level indicators, VU meters, and DIY electronics projects. Reliable, easy to use, and compatible with through-hole mounting.

✅ Specifications:

• Part Number: LM3915N

• Type: LED Bar/Dot Display Driver IC

• Package: DIP (Dual Inline Package)

• Output: 10-segment logarithmic display

• Voltage: 3V to 25V operating range

• Mounting: Through-hole

⚙️ Features:

• Drives LED bar or dot displays

• Logarithmic scaling for audio applications

• Easy to interface with microcontrollers

• Low power consumption

📦 Applications:

• Audio level meters / VU meters

• DIY electronics projects

• LED bar/dot display projects

• Arduino and microcontroller circuits

• Signal monitoring circuits
