TP4056 with Protection Type C

🔹 TP4056 with Protection Type-C

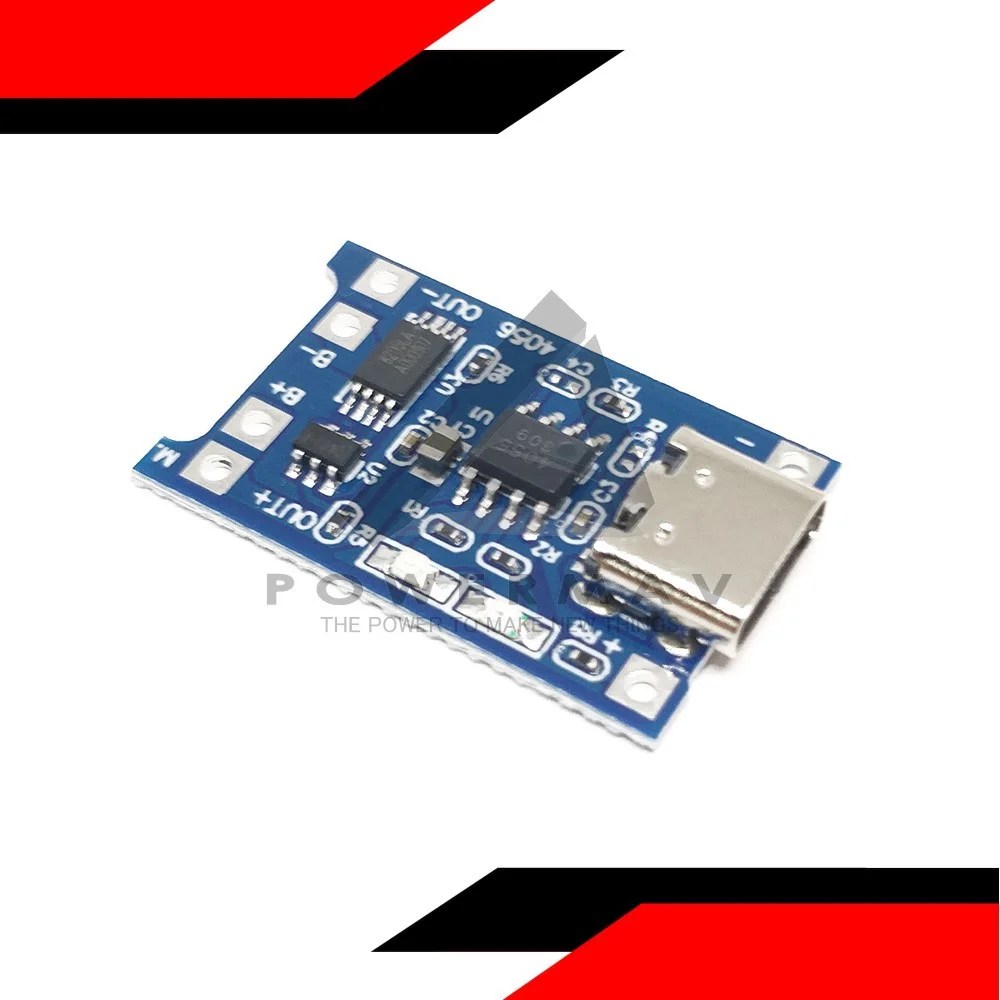

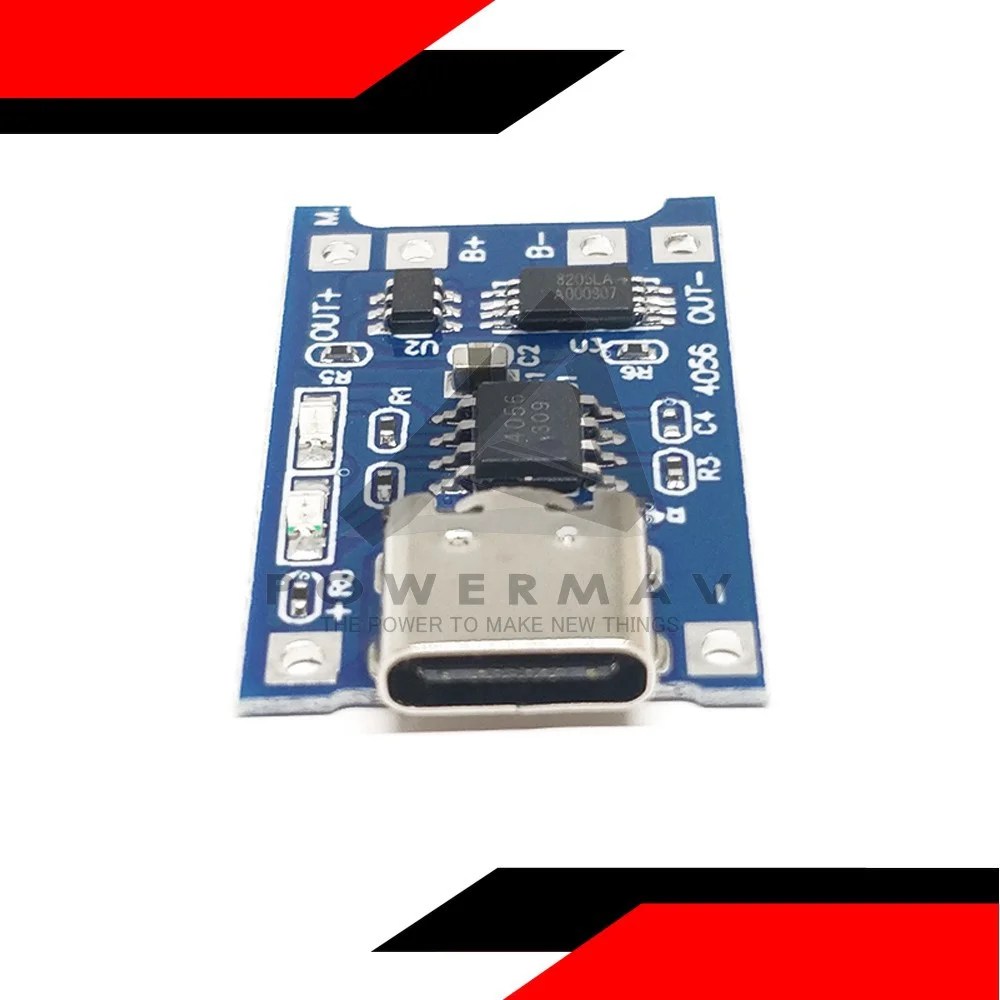

The TP4056 Type-C charging module is a lithium battery charging board with built-in protection circuitry. It safely charges single-cell 3.7V lithium-ion or lithium-polymer batteries using a USB Type-C connector. Ideal for DIY power banks, IoT devices, and rechargeable projects.

✅ Specifications:

• Input Voltage: 5V DC (USB Type-C)

• Charging Current: 1A (max)

• Battery Type: 3.7V Li-Ion / Li-Po single cell

• Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit

• Charging Cut-off Voltage: 4.2V ± 1%

• Dimensions: ~25mm x 18mm

• Connector: USB Type-C

⚙️ Features:

• Built-in protection IC (DW01 + MOSFET)

• Type-C connector for modern compatibility

• LED indicators for charging (red) and full charge (blue)

• Compact and easy to integrate

• Safe, stable, and efficient charging performance

📦 Applications:

• DIY rechargeable battery packs

• Power banks

• IoT and portable electronics

• Arduino and ESP32 battery power projects

• Solar charging systems
