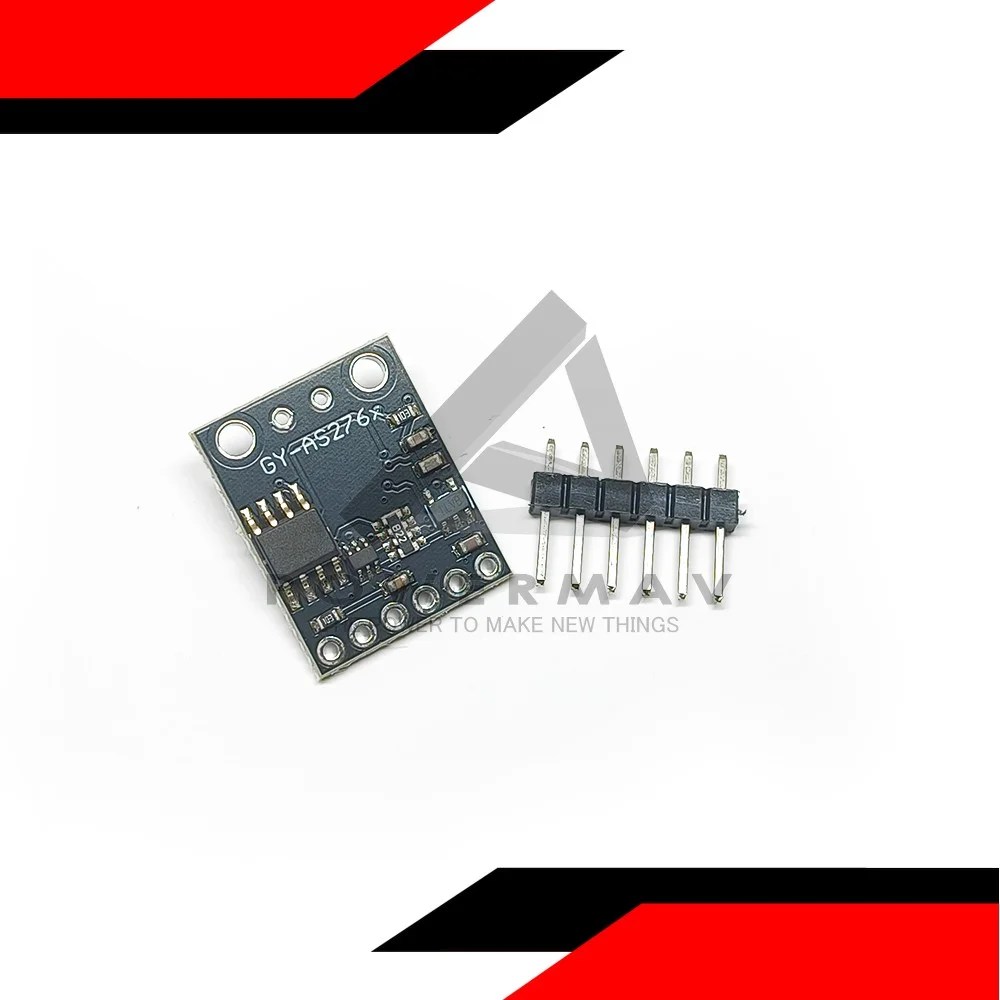

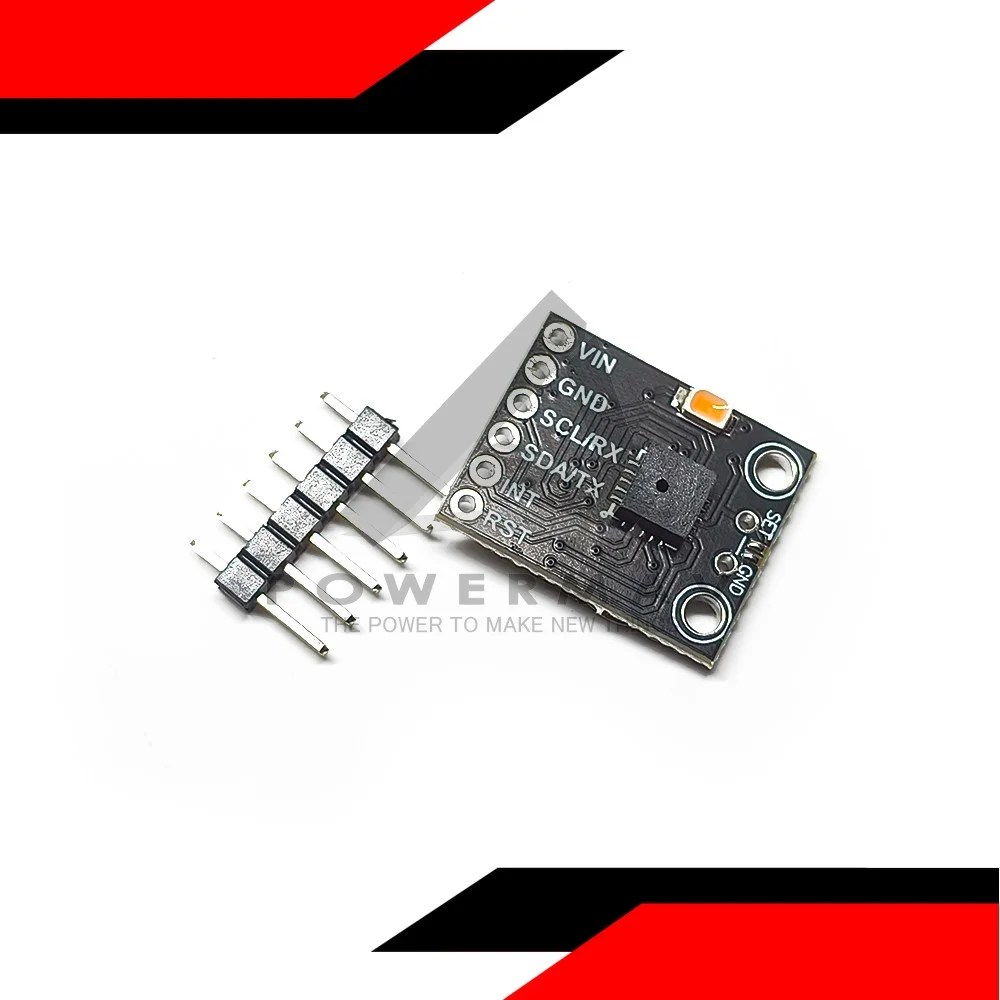

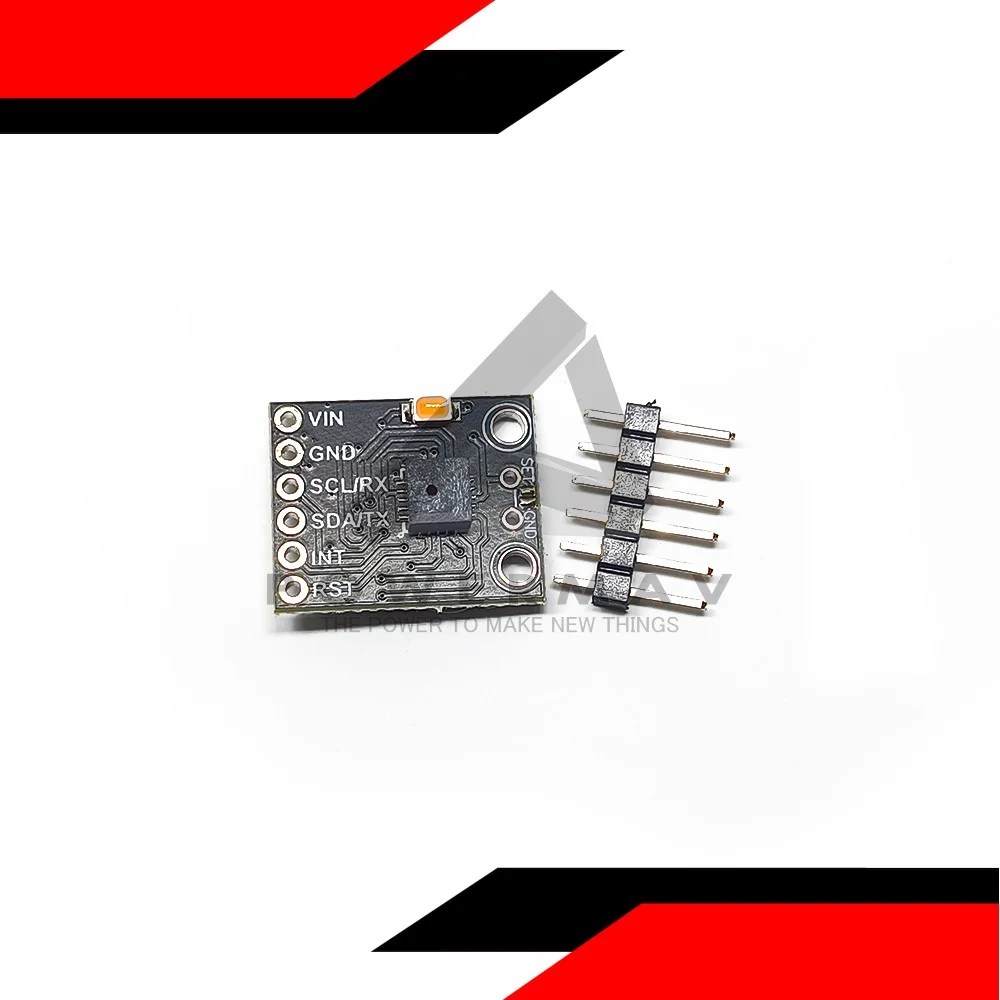

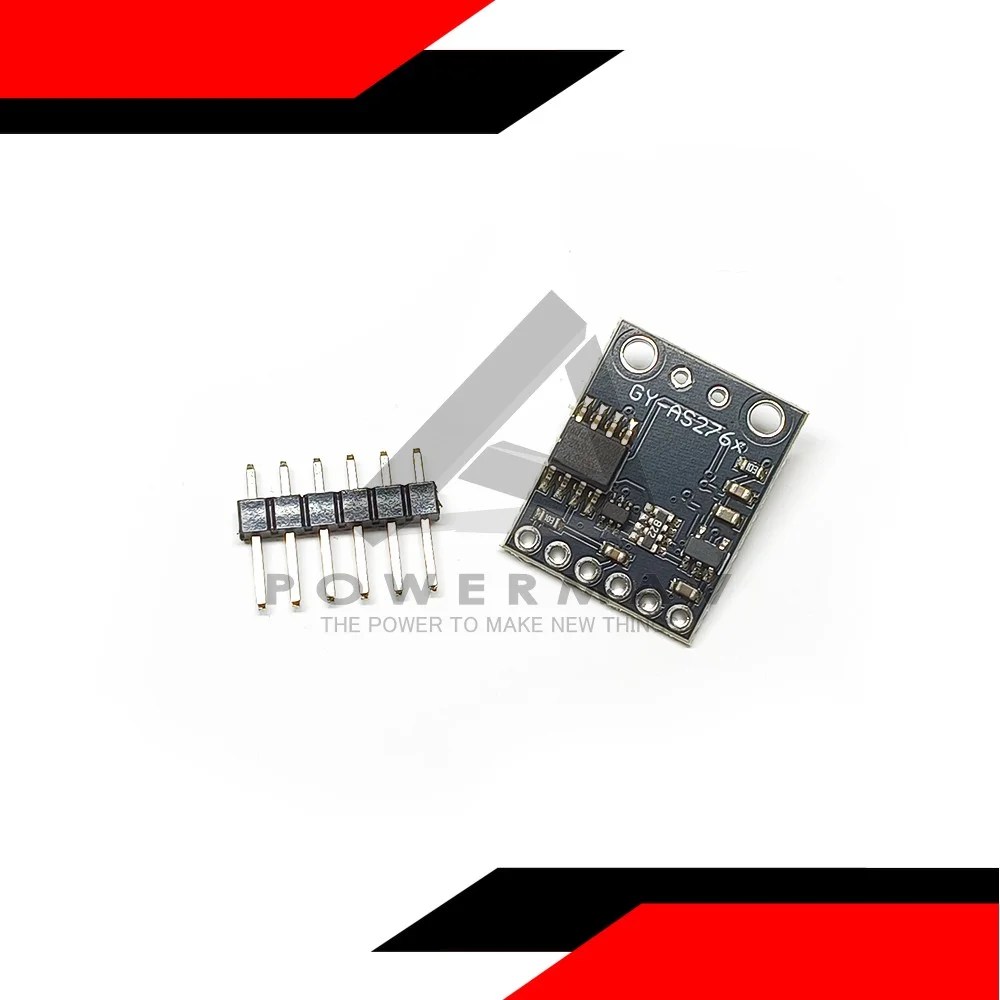

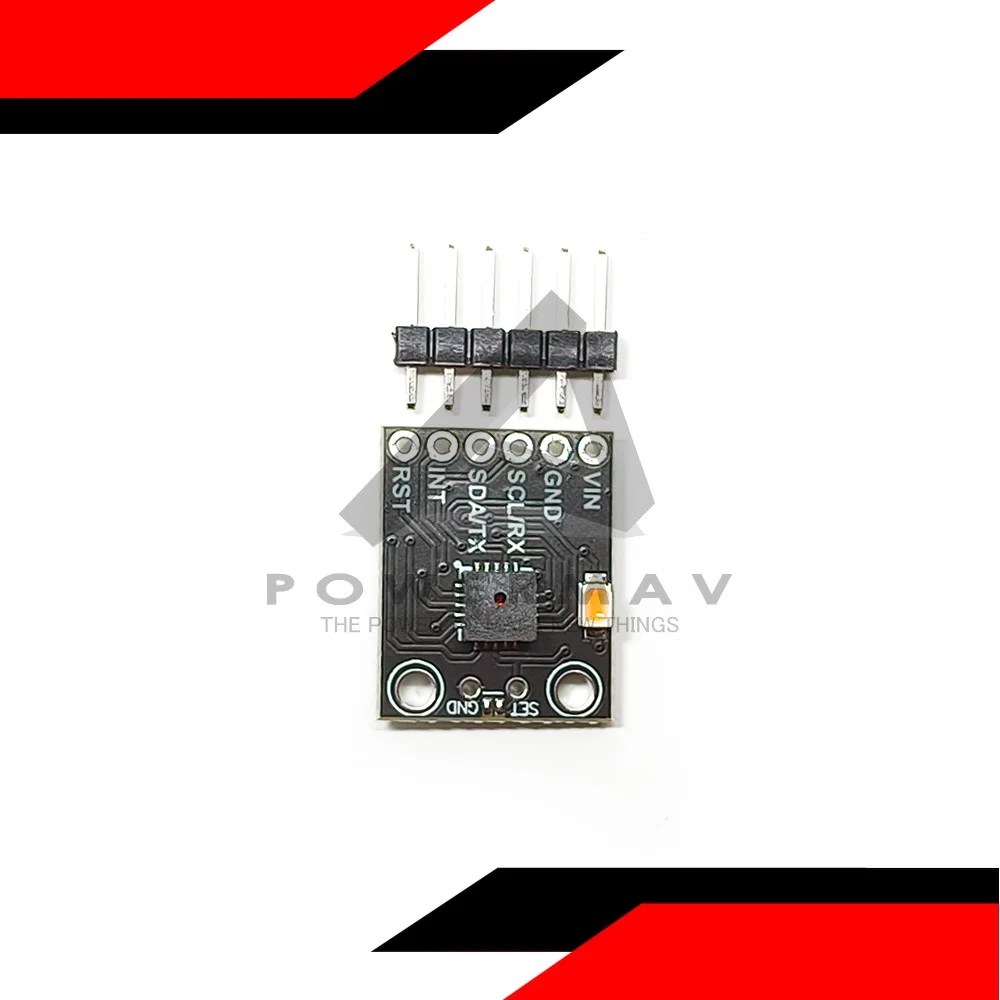

AS7263 Module (GY-AS7263)

🔹 AS7263 Module (GY-AS7263) – 6-Channel Near-Infrared Spectral Sensor

The AS7263 is a digital 6-channel spectrometer designed for spectral identification in the near-infrared (NIR) range. It detects light at six specific wavelengths (610nm, 680nm, 730nm, 760nm, 810nm, and 860nm), each with a 20nm full-width half-max (FWHM) bandwidth. This makes it ideal for material analysis, product authentication, and chemical sensing applications.

✅ Specifications:

• Sensor: AS7263 (ams OSRAM)

• Channels: 6 NIR channels (610, 680, 730, 760, 810, 860 nm)

• Bandwidth: 20nm FWHM per channel

• ADC Resolution: 16-bit

• Interface: I²C (default address 0x49) or UART (AT commands)

• Supply Voltage: 2.7V – 3.6V (3.3V typical)

• Operating Temperature: -40°C to +85°C

• Package: LGA-20 (module breakout varies)

📦 Features:
✔️ Factory-calibrated NIR spectral sensing – no drift over time or temperature
✔️ Selectable I²C or UART interface via jumpers
✔️ Integrated LED driver with programmable current for electronic shutter applications
✔️ Onboard illumination LED (on SparkFun variant) for consistent sample lighting
✔️ Compact breakout with Qwiic/STEMMA QT connectors for solderless I²C

📦 Applications:
✔️ Material and product authentication
✔️ Chemical analysis and food/beverage safety
✔️ Horticulture and plant health monitoring
✔️ Color matching and spectral identification
✔️ Portable spectrometry and research projects
