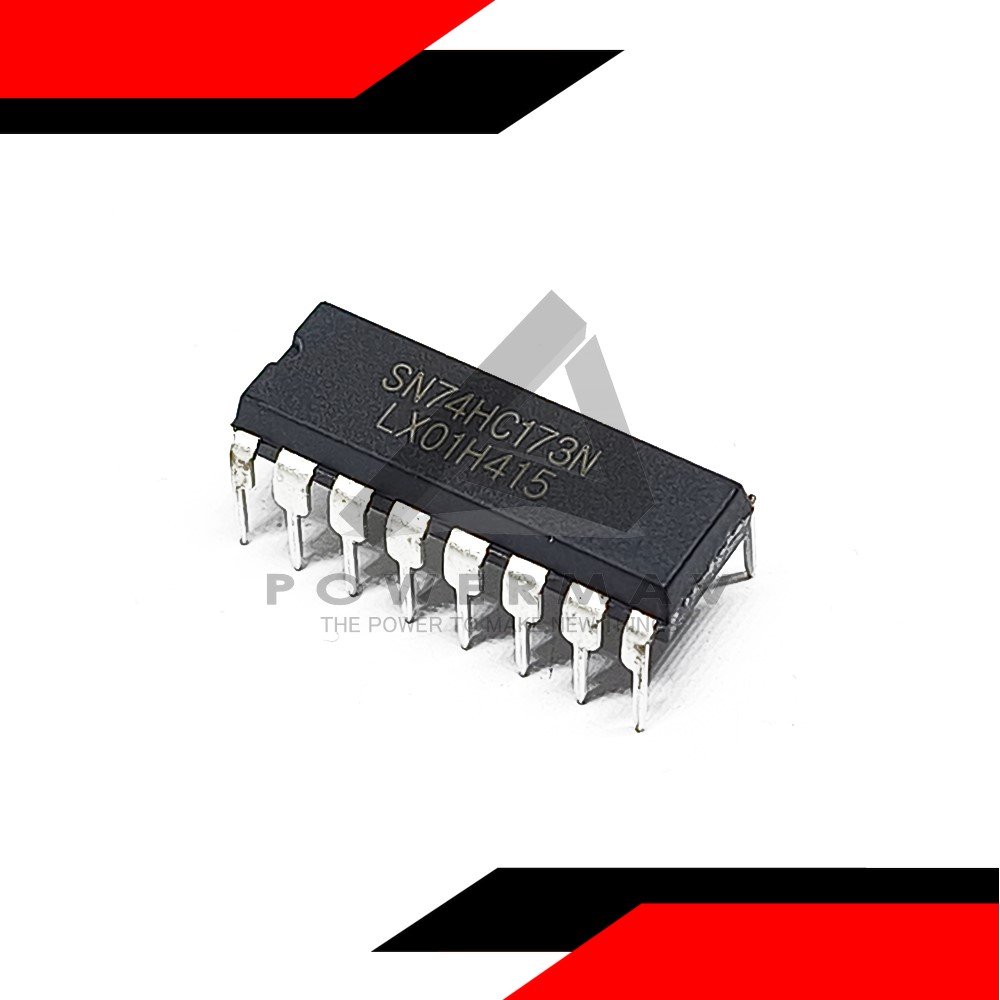

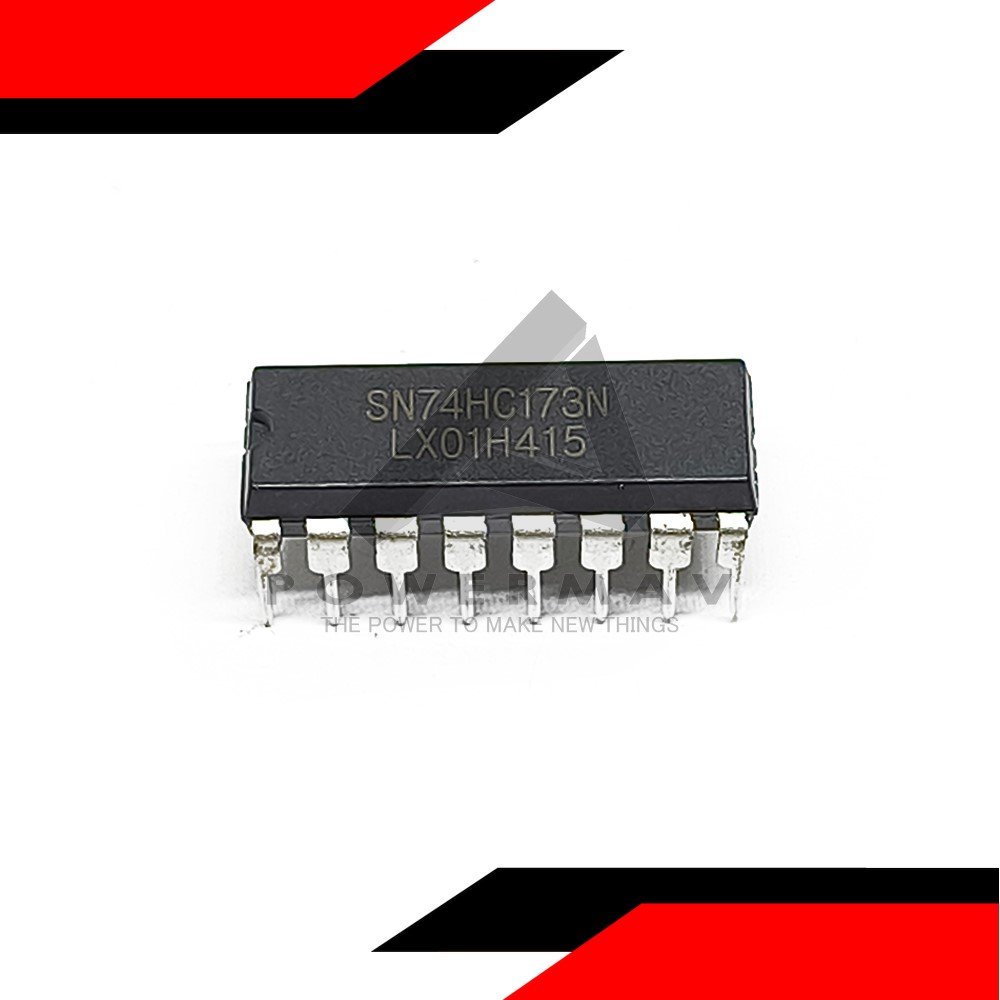

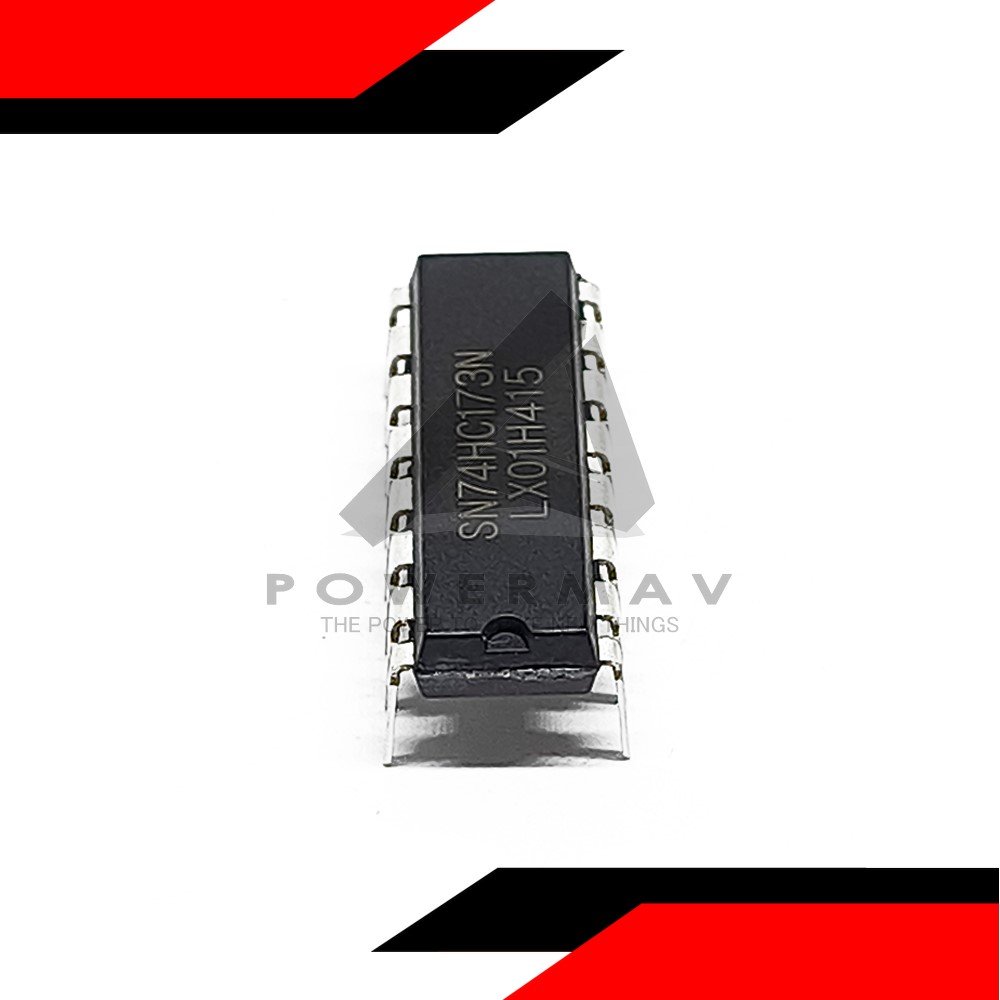

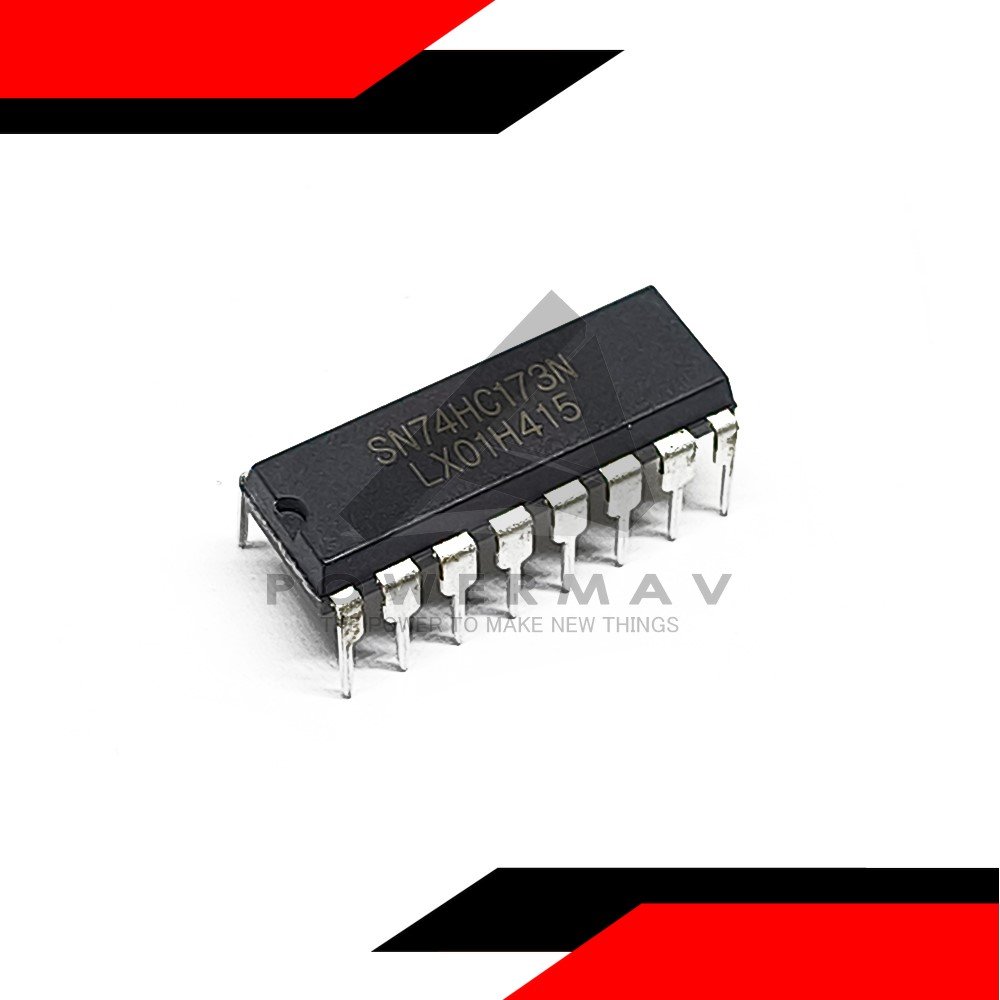

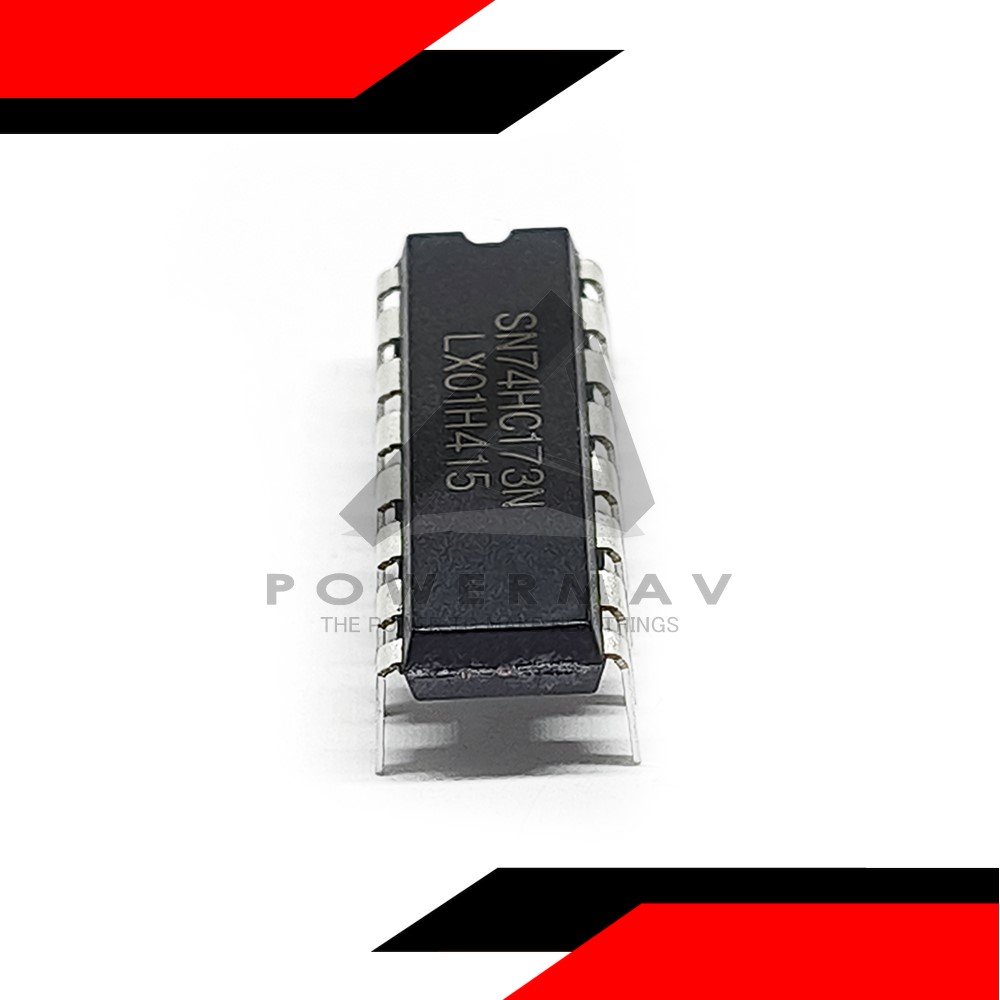

The 74HC173; 74HCT173 is a quad positive-edge triggered D-type flip-flop. The device features clock (CP), master reset (MR), two input enable (E1, E2) and two output enable (OE1, OE2) inputs.
Logic IC Type- D FLIP-FLOP
Sub Category- FF/Latches
JESD-30 Code- R-PDIP-T16
Load Capacitance (CL)- 50.0 pF
Max Frequency@Nom-Sup- 2.5E7 Hz
Max I(ol)- 0.0078 Amp
Number of Functions- 4
Number of Terminals- 16
Operating Temperature-Min- -40.0 Cel
Operating Temperature-Max- 85.0 Cel
Output Characteristics- 3-STATE
Package Body Material- PLASTIC/EPOXY
Package Code- DIP
Package Equivalence Code- DIP16,.3
Package Shape- RECTANGULAR
Package Style- IN-LINE
Surface Mount- NO
Technology- CMOS
Temperature Grade- INDUSTRIAL
Terminal Form- THROUGH-HOLE
Terminal Pitch- 2.54 mm
Terminal Position- DUAL
Trigger Type- POSITIVE EDGE
