Digital Audio Player Module with Bluetooth

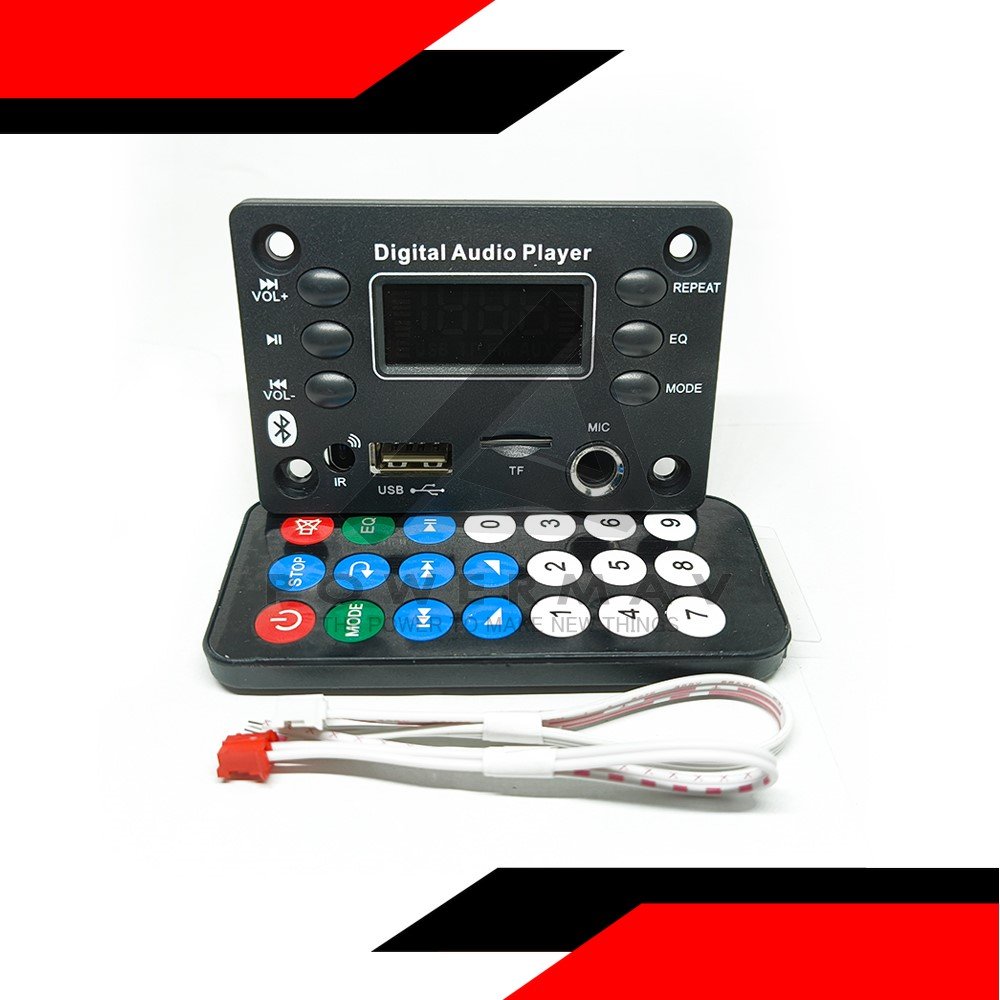

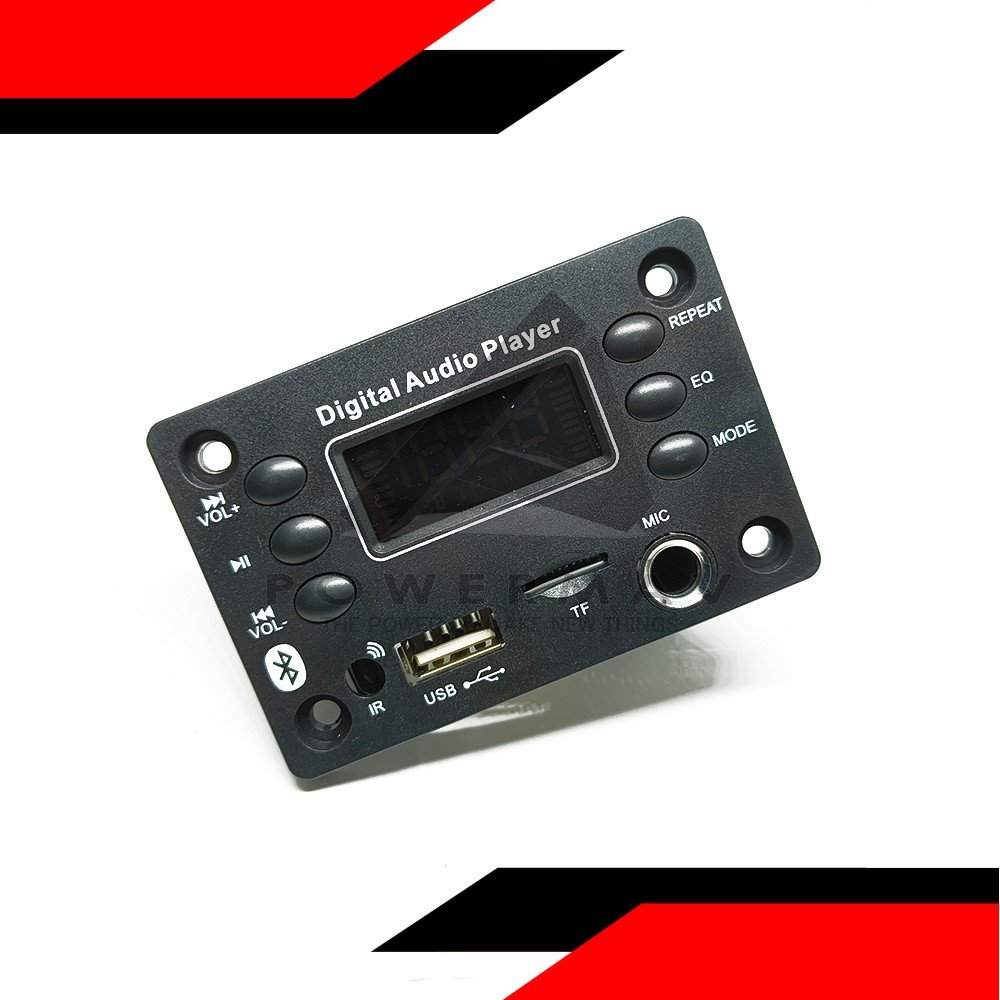

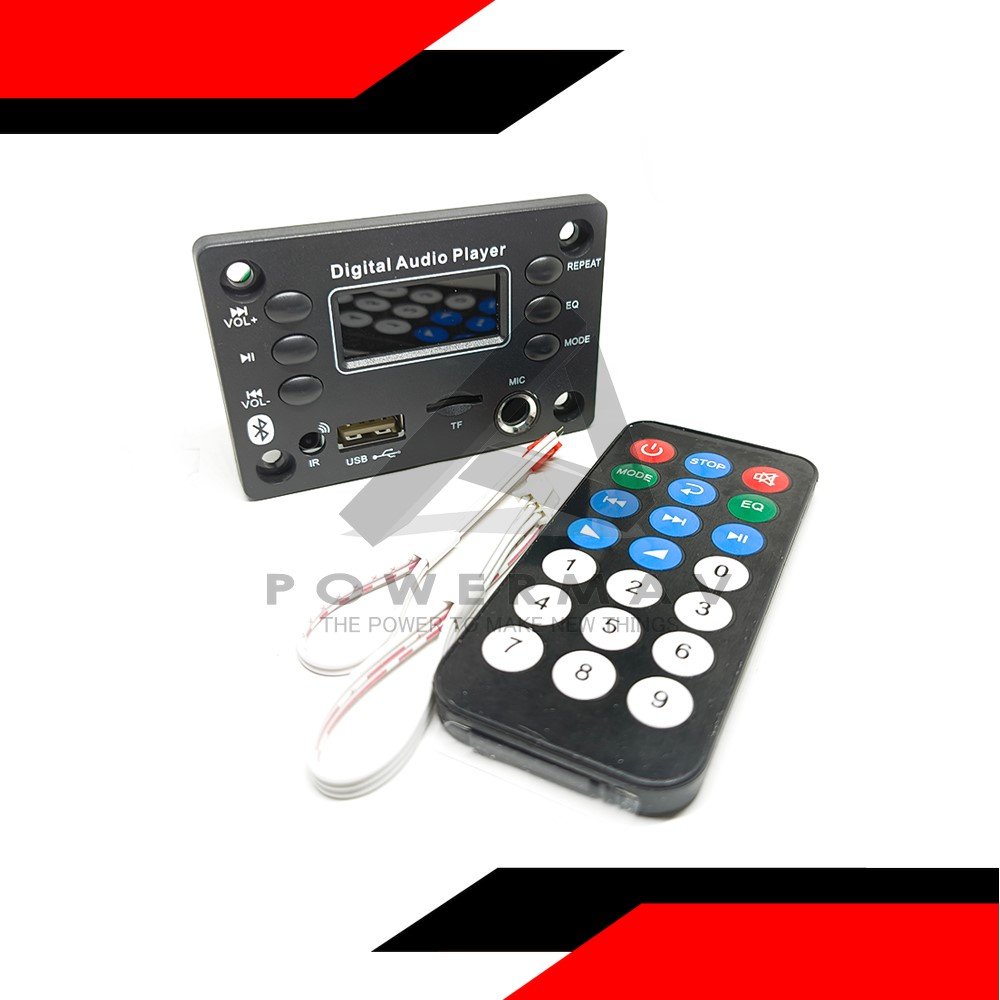

🔹 Digital Audio Player Module with Bluetooth – JQ-D136BT-A

The JQ-D136BT-A is a versatile 2x25W Bluetooth 5.0 MP3 decoder board designed for DIY audio projects, car audio systems, and portable speakers. It supports multiple playback sources (USB, TF card, FM radio), hands-free calling, microphone input for karaoke/recording, and comes with a full-function remote control .

✅ Specifications:

• Model: JQ-D136BT-A

• Bluetooth Version: 5.0

• Power Supply: DC 7V–16V (Recommended 12V, ≥2A)

• Amplifier Output: 2 x 25W Stereo (Total 50W)

• Supported Audio Formats: MP3, WMA, WAV, APE, FLAC

• Playback Sources: USB Drive, TF (MicroSD) Card, FM Radio (87.5–107.5 MHz)

• Display: LED/LCD Screen

• Microphone Input: 6.5mm Jack (for karaoke/recording)

• Panel Size: 75mm x 50mm, Depth: 40mm

• Operating Modes: Touch tones, Remote Control

📦 Features:
✔️ Bluetooth 5.0 for stable wireless streaming
✔️ Built-in 2x25W amplifier – drives two speakers directly
✔️ Supports lossless audio formats (FLAC, APE, WAV)
✔️ USB and TF card playback with folder navigation
✔️ FM radio tuner with preset stations
✔️ Hands-free calling with built-in microphone
✔️ 6.5mm microphone input – supports karaoke and recording

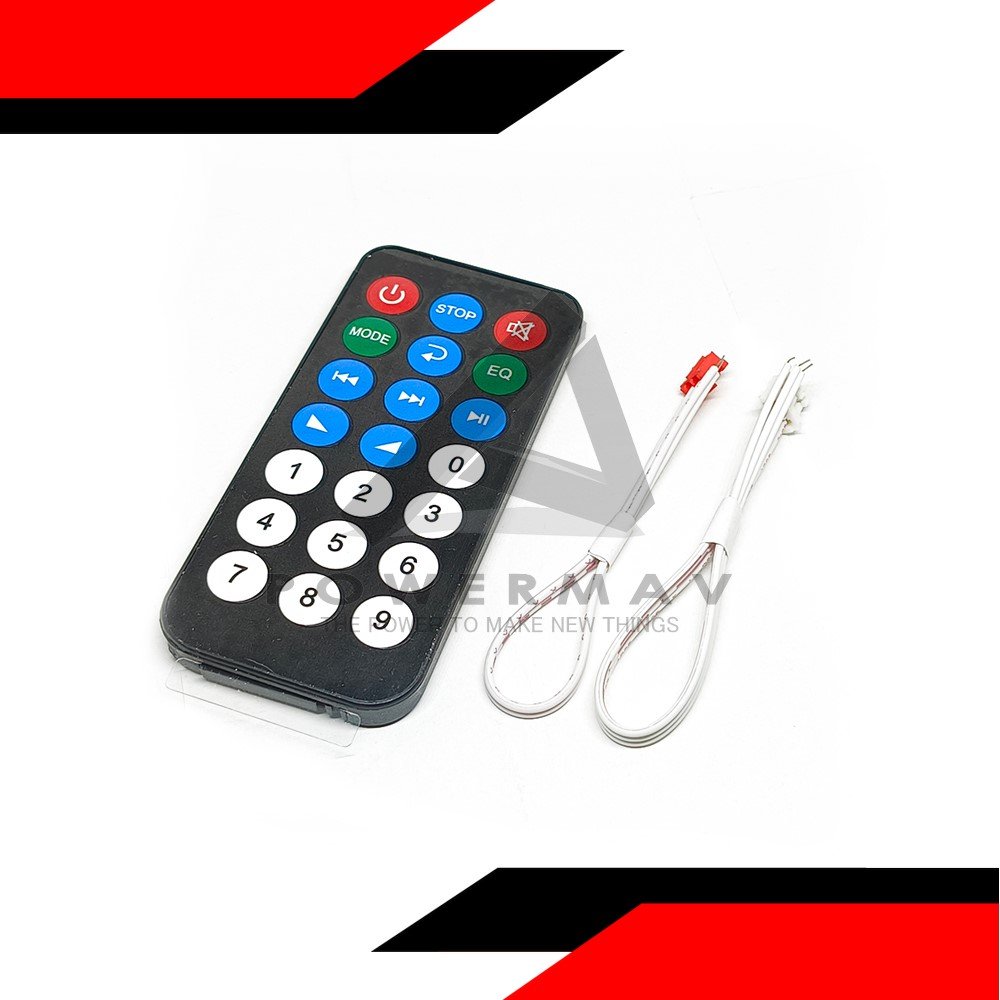

✔️ Full-function IR remote control included
✔️ EQ presets for sound customization
✔️ LED display for status and frequency

📦 Applications:
✔️ DIY Bluetooth speaker systems
✔️ Car audio and MP3 player upgrades
✔️ Portable audio players
✔️ Karaoke machines and voice recording setups
✔️ Home audio and music streaming projects
✔️ Educational audio/electronics projects
