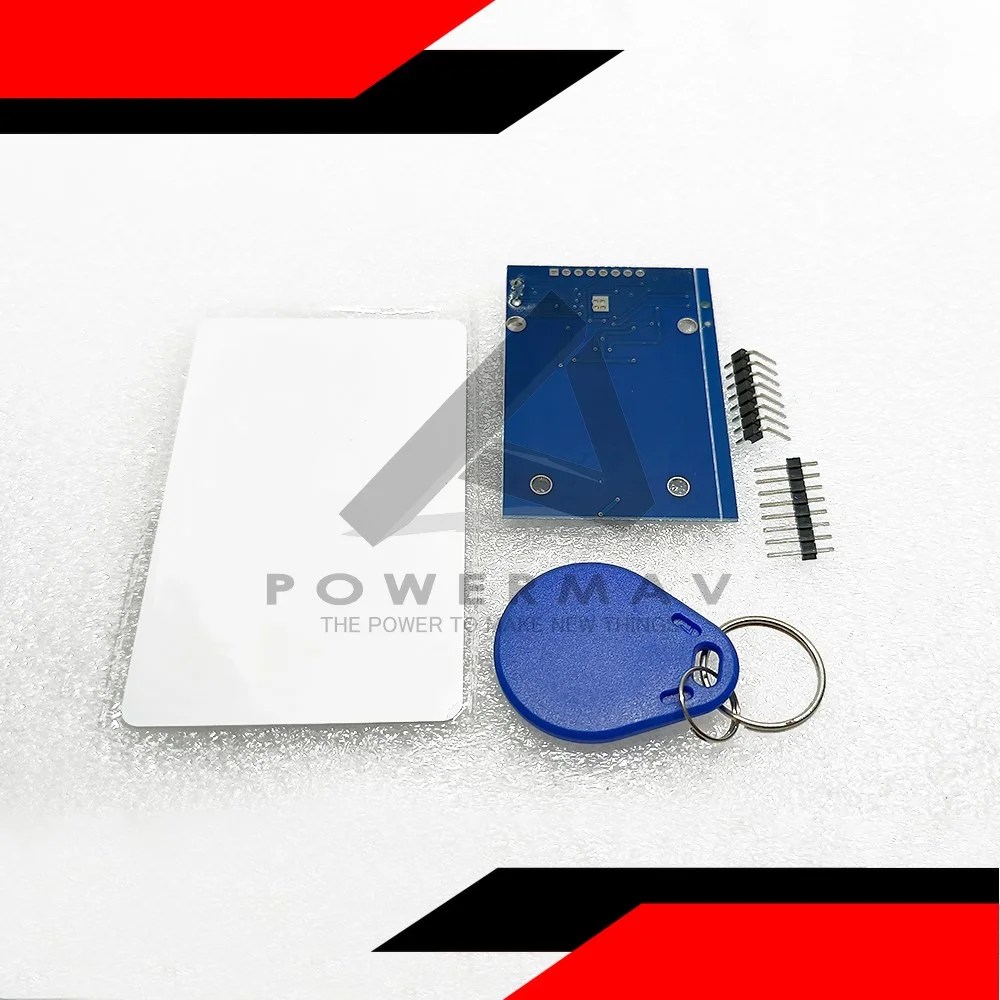

MFRC522 RFID Module 13.56mhz

Specifications:

• Operating Current :13-26mA/DC 3.3V

• Idle Current :10-13mA/DC 3.3V

• Sleep Current: <80uA

• Peak Current: <30mA

• Operating Frequency: 13.56MHz

• Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire

• Environmental Operating Temperature: -20-80 degrees Celsius

• Environmental Storage Temperature: -40-85 degrees Celsius

• Relative humidity: relative humidity 5% -95%

• Reader Distance: ≥50mm/1.95″(mifare 1 )

• Module Size: 40mm×60mm/1.57*2.34″

• Module interfaces SPI Parameter

• Data transfer rate: maximum 10Mbit/s

Features:

• MF RC522 is applied to the highly integrated read and write.

• 13.56MHz contactless communication card chip.

• The low-voltage, low-cost, small size of the non-contact card chip to read and write.

• Smart meters and portable handheld devices developed better choices.

• The MF RC522 uses advanced modulation and demodulation concepts completely integrated into all types of 13.56MHz passive contactless communication methods and protocols.

• 14443A compatible transponder signals.

• The digital part to handle the ISO14443A frames and error detection.

• support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.

• MFRC522 support the MIFARE series of high-speed non-contact communication, a two-way data transmission rate up to 424kbit/s.

• MF RC522 is similar to MF RC500 MF RC530 , but also has characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.

• The MF522-AN module design circuit card reader, is easy to use.

• Low cost, and applies to the user equipment development.

• The reader and advanced applications development meet the user RF card terminal design/production needs.

• This module can be directly loaded into the various reader molds, very convenient.
